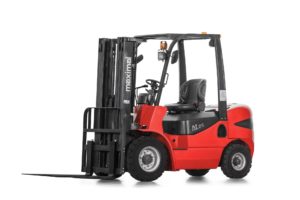

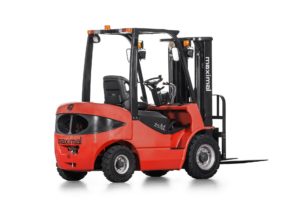

SERIE M - 2.0-2.5 TON - DIESEL
Somos la primera empresa en Paraguay en contar con la mayor variedad de montacargas en el mercado. Desde montacargas para depósitos hasta equipos portuarios de alta performance; Engine está preparado para satisfacer todas las necesidades de trabajo.
| General | 1 | Model | FD20T-M2 | FD25T-M2 | |||
| 2 | Type | WV3/WE3/WB3/G(1) 3/G(18)3/G(2)3/GF3 | |||||
| 3 | Rated capacity | Kg | 2000 | 2500 | |||
| 4 | Load centre | mm | 500 | ||||
| Characteristic&Dimension | 5 | Lift height | mm | 3000 | |||
| 6 | Free lift height | mm | 160 | ||||
| 7 | Fork size | L×W×T | mm | 1070×122×40 | |||
| 8 | Fork regulating range | Min./Max. | mm | 250/1040 | |||
| 9 | Mast tilt angle | F/R | Deg | 6°/12° | |||
| 10 | Front overhang | mm | 465 | ||||
| 11 | Rear overhang | mm | 492 | 492 | |||
| 12 | Min. ground clearance(Bottom of mast) | mm | 125 | ||||
| 13 | Overall dimensions | Length to face of fork (without fork) | mm | 2510 | 2545 | ||
| 14 | Overall width | mm | 1150 | ||||
| 15 | Mast lowered height | mm | 2010 | ||||
| 16 | Mast extended height (with backrest) | mm | 3990 | ||||
| 17 | Overhead guard height | mm | 2145 | ||||
| 18 | Turning radius(outside) | mm | 2180 | 2250 | |||
| 19 | Min. right angle stacking aisle width (add load length and clearance) | mm | 1940 | 2010 | |||
| Performance | 20 | Speed | Travel(Unladen) | Km/h | 18 | ||
| 21 | Lifting(Laden) | mm/s | 510(WV3) | ||||
| 22 | Lowering(Laden) | mm/s | 450 | ||||
| 23 | Max. Drawbar pull(Laden/unladen) | KN | 17/15 | ||||
| 24 | Max. Gradeability(Loaden) | ％ | 20 | ||||
| Tyre | 25 | Tyre | Front | 7.00-12-12 PR | |||
| 26 | Rear | 6.00-9-10 PR | |||||
| 27 | Tread | Front | mm | 970 | |||
| 28 | Rear | mm | 980 | ||||
| 29 | Wheelbase | mm | 1600 | ||||
| Weight | 30 | Self weight | kg | 3320 | 3620 | ||
| 31 | Weight Distribution | Laden | Front Axle | kg | 4650 | 5260 | |
| 32 | Rear Axle | kg | 670 | 860 | |||
| 33 | Unladen | Front Axle | kg | 1500 | 1630 | ||
| 34 | Rear Axle | kg | 1820 | 1990 | |||
| Power&Transmission | 35 | Battery | Voltage/Capacity | V/Ah | 12/90 | 12/90 | |
| 43 | Fuel tank capacity | L | 60 | ||||
| 44 | Transmission | Manufacture | China | ||||
| 45 | Type | Powershift | |||||
| 46 | Stage | F/R | 1/1 | ||||
| 47 | Operating pressure(For attachments) | Mpa | 17.5 | ||||
