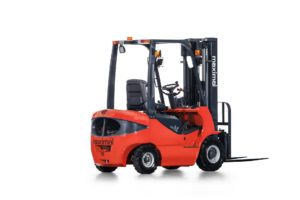

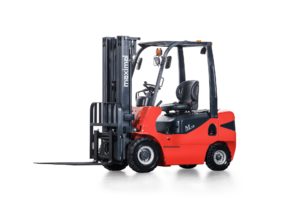

SERIE M - 1.5-1.8 TON - DIESEL
Somos la primera empresa en Paraguay en contar con la mayor variedad de montacargas en el mercado. Desde montacargas para depósitos hasta equipos portuarios de alta performance; Engine está preparado para satisfacer todas las necesidades de trabajo.
|
General |
1 |
Basic Model |
|
FD15T-M |
FD18T-M |
||
|
2 |
Type |
|
WC3/G(6)3 |
||||
|
3 |
Power type |
|
Diesel |
||||
|
4 |
Rated capacity |
kg |
1500 |
1800 |
|||
|
5 |
Load centre |
mm |
500 |
||||
|
Characteristic &Dimension |
6 |
Lift height |
mm |
3000 |
3000 |
||
|
7 |
Free lift height |
mm |
135 |
||||
|
8 |
Fork size |
LxWxT |
mm |
920x100x35 |
920x100x35 |
||
|
9 |
Fork regulating range |
Min./Max. |
mm |
200/890 |
|||
|
10 |
Mast tilt angle |
F/R |
Deg |
6°/12° |
|||
|
11 |
Front overhang |
mm |
400 |
||||
|
12 |
Rear overhang |
mm |
465 |
510 |
|||
|
13 |
Min. ground clearance(Bottom of mast) |
mm |
130 |
||||
|
14 |
Overall dimensions |
Length to face of fork (without fork) |
mm |
2255 |
2300 |
||
|
15 |
Overall width |
mm |
1070 |
||||
|
16 |
Mast lowered height |
mm |
2015 |
||||
|
17 |
Mast extended height (with backrest) |
mm |
3984 |
||||
|
18 |
Overhead guard height |
mm |
2110 |
||||
|
19 |
Turning radius(outside) |
mm |
2040 |
2075 |
|||
|
20 |
Min. right angle stacking aisle width (add load length and clearance) |
mm |
1825 |
1857 |
|||
|
Performance |
21 |
Speed |
Travel(Unladen) |
km/h |
14.5 |
||
|
22 |
Lifting(Laden) |
mm/s |
550(WC3) |
||||
|
23 |
Lowering(Laden) |
mm/s |
450 |
||||
|
24 |
Max. Drawbar pull(Laden/unladen) |
KN |
18/16(WC3) |
||||
|
25 |
Max. Gradeability(Laden) |
% |
20 |
||||
|
Chassis |
26 |
Tyre |
Front |
|
6.50-10-10PR |
||
|
27 |
Rear |
|
5.00-8-8 PR |
||||
|
28 |
Tread |
Front |
mm |
890 |
|||
|
29 |
Rear |
mm |
920 |
||||
|
30 |
Wheelbase |
mm |
1400 |
||||
|
Weight |
31 |
Self weight |
kg |
2590 |
2800 |
||
|
32 |
Weight Distribution |
Laden |
Front Axle |
kg |
3520 |
3950 |
|
|
33 |
Rear Axle |
kg |
570 |
650 |
|||
|
34 |
Unladen |
Front Axle |
kg |
1160 |
1260 |
||
|
35 |
Rear Axle |
kg |
1430 |
1540 |
|||
|
Battery |
36 |
Battery |
Voltage/Capacity |
V/Ah |
12/90 |
||
|
Transmission |
37 |
Transmission |
Manufacture |
|
China |
||
|
38 |
Type |
|
Powershift |
||||
|
39 |
Stage |
F/R |
|
1/1 |
|||
|
40 |
Operating pressure(For attachments) |
MPa |
14.5 |
||||
